300mm Single Film Frame Shipper
Single wafer tray VFP-ND-12R-90CA
12inch Single Film Frame Shipper (ESD Supported)

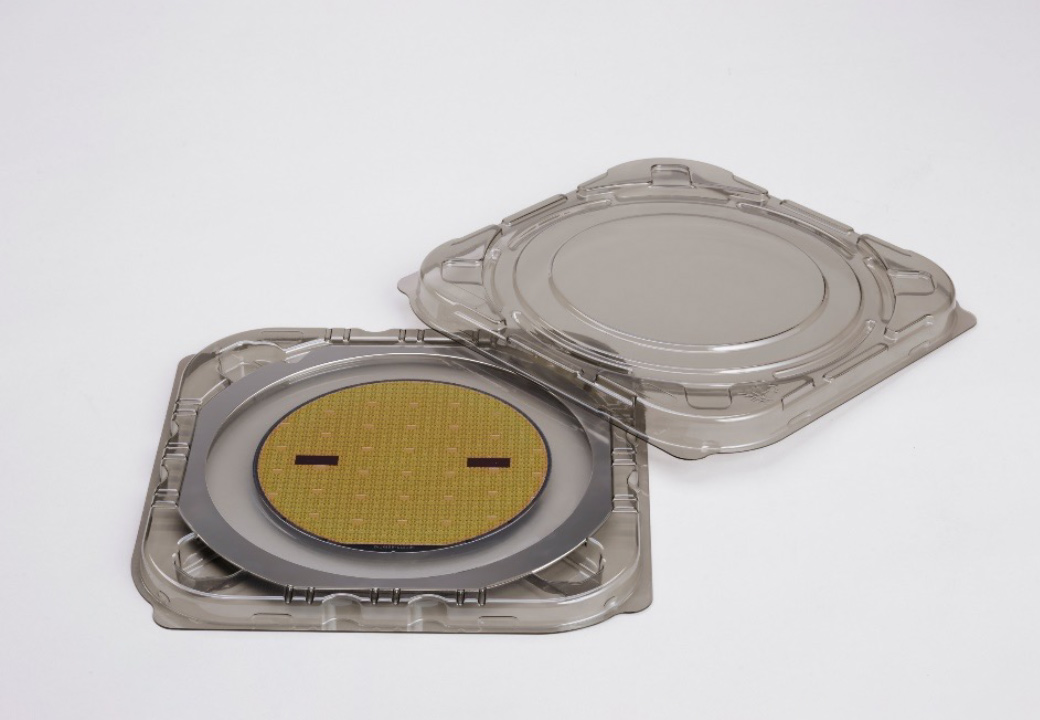

VFP-ND-12R-90CA is a single wafer tray for 300mm dicing wafer with tape frame. High transparency allows the content to be checked without opening the case. Especially for In-process.

Features

  • Non-contact with wafer surface.
  • Single wafer with a tape frame can be carried.
  • Uses a clean conductive material (conductive polymer).
  • Optimal for transporting test production wafers.
  • ESD safe.

Specifications

Part number VFP-ND-12R-90A
Compatible wafer size 300mm or 12inch frame wafer
Capacity 1 wafer
Material Conductive A-PET
Dimension 1.7mm × 420mm × 420mm
Weight 0.42kg
Surface resistance R < 10^7 Ω
Carton dimension 10 cases/carton (480mmx360mmx510mm, 10.0kg)

For more information, please feel free to contact us.
