Wafer Handling System

300mm Single Wafer Shipper (12inch)
In-process tray SS-12ST& SS-12ST-CL
Single Wafer Shipper (ESD Supported)

The SS-12ST can be used as a 12inch in-process tray. It can be used in small spaces due to the stacking function. It has high transparency and high cleanliness.

Features

  • In-process tray for single 12inch wafer.
  • Uses a clean conductive material (conductive polymer).
  • By holding wafer edge, there is no contact with the surface of wafer.
  • Optimal for transporting test production wafers.
  • Conforms to ANSI / ESD S541.

Specification

Model number
SS-12ST& SS-12ST-CL
Material
container: Conductive PC / clip: conductive PP
Surface resistance value
R < 10^7 Ω
Wafer storage diameter
302+0.5/-1.5mm
Height 0f storage
0.9mm
Product size
21mm × 317mm × 317mm 0.8kg
Carton size (10pcs/carton)
355mm ×355mm ×235mm 17.4kg

How to close

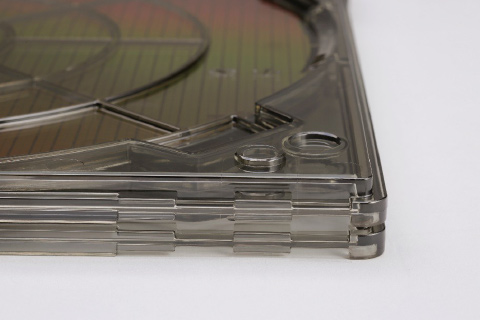

①Stack trays in the same orientation

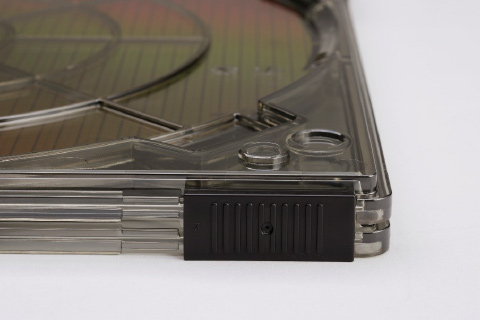

②Attach the included clip

③Slide to the left to fix

Click here for product introduction. Please feel free to contact us .
