Wafer Handling System

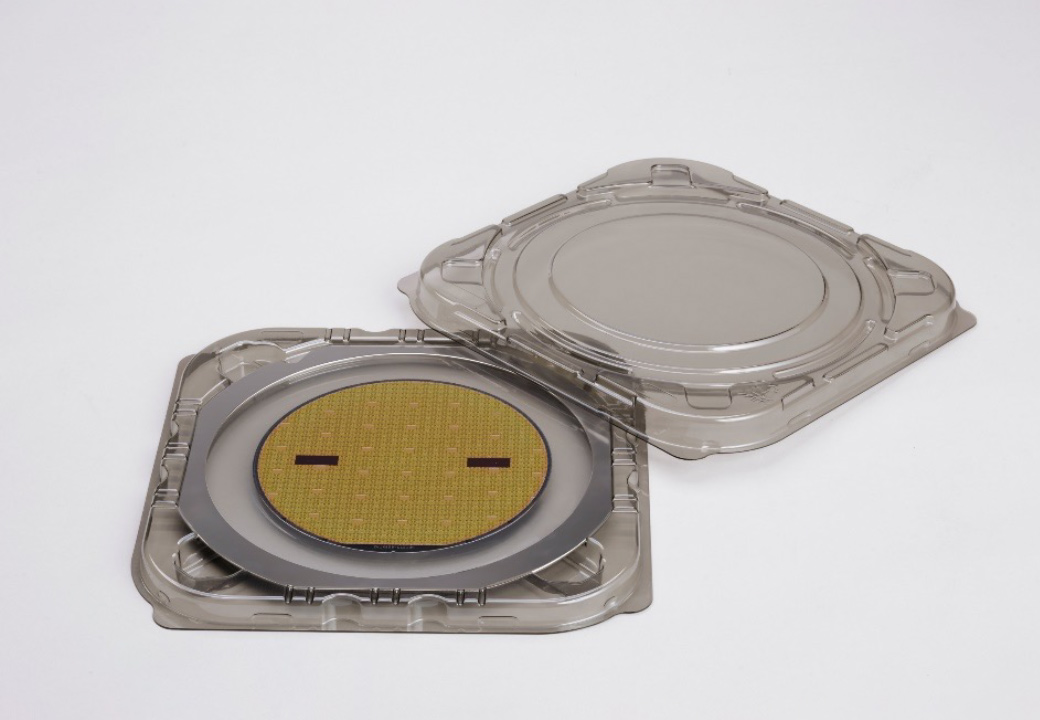

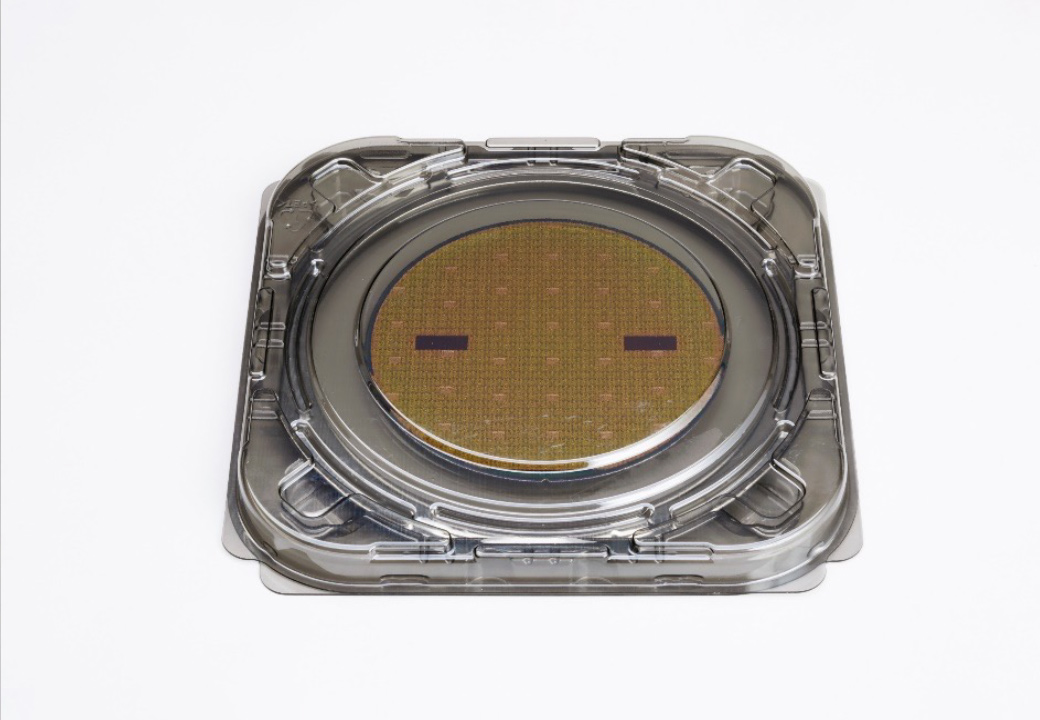

200mm Single Film Frame Shipper (8inch) Single wafer tray VFP-ND-8R-90CA
Single Film Frame Shipper (ESD Supported)

The VFP series of FFS can be used to store and carry single 8inch dicing wafer with a tape frame.

Features

  • Non-contact with wafer surface.
  • Single wafer with a tape frame can be carried.
  • Uses a clean conductive material (conductive polymer).
  • Optimal for transporting test production wafers.
  • ESD safe.

Specification

Model number
VFP-ND-8R-90CA
Material
Conductive A-PET
Surface resistance value
R < 10^7 Ω
Product size
1.7mm × 320mm × 320mm 0.28kg
Carton size (30pcs/carton)
660mm ×310mm ×350mm 8.5kg

Click here for product introduction. Please feel free to contact us .
