Wafer Handling System

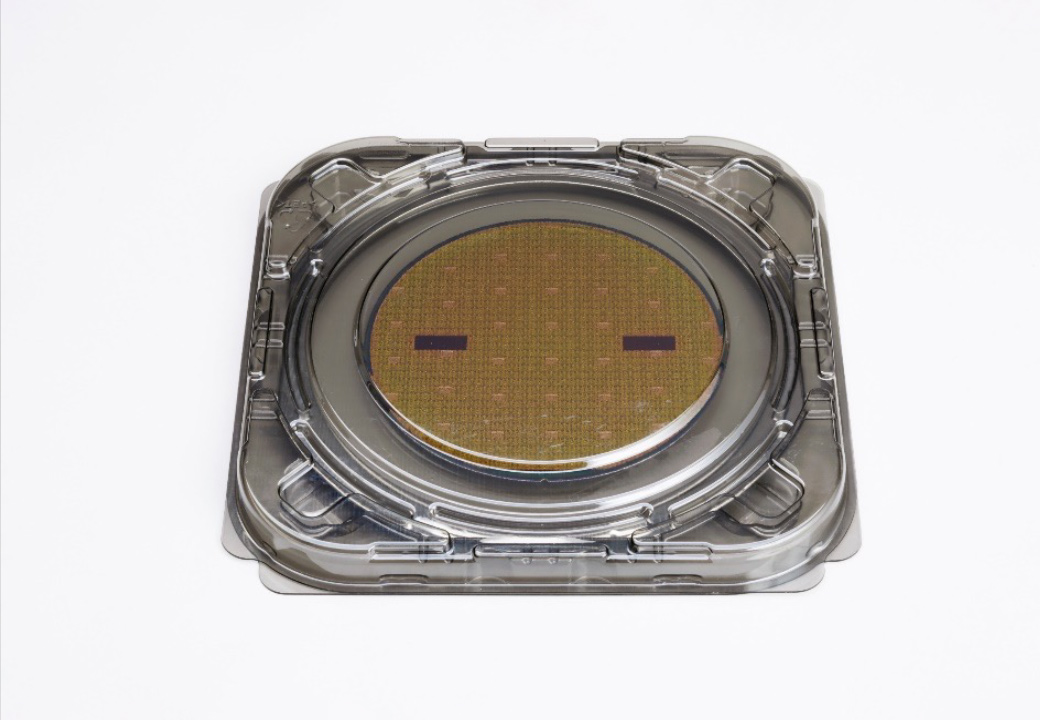

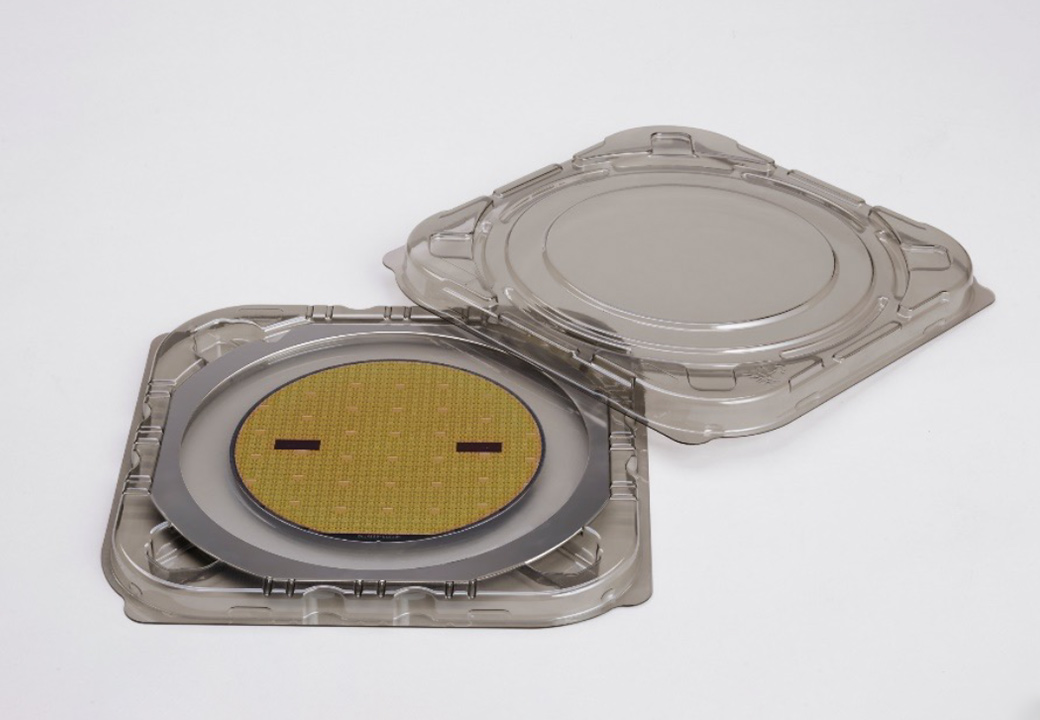

150mm Single Film Frame Shipper (6inch) Single wafer tray VFP-6R-90FGA
Single Film Frame Shipper (ESD Supported)

The VFP series of FFS can be used to store and carry single 6inch dicing wafer with a tape frame.

Features

  • Non-contact with wafer surface.
  • Single wafer with a tape frame can be carried.
  • Uses a clean conductive material (conductive polymer).
  • Optimal for transporting test production wafers.
  • ESD safe.

Specification

Model number
VFP-ND-6R-90CA
Material
Conductive A-PET
Surface resistance value
R < 10^7 Ω
Product size
1.7mm × 250mm × 250mm 0.17kg
Carton size (30pcs/carton)
340mm ×460mm ×350mm 4.5kg

Click here for product introduction. Please feel free to contact us .
