300mm Multiple Film Frame Shipper (12inch) 13wafer store type
Protos Carrier NDM-12
Film Frame Shipper (ESD Supported)

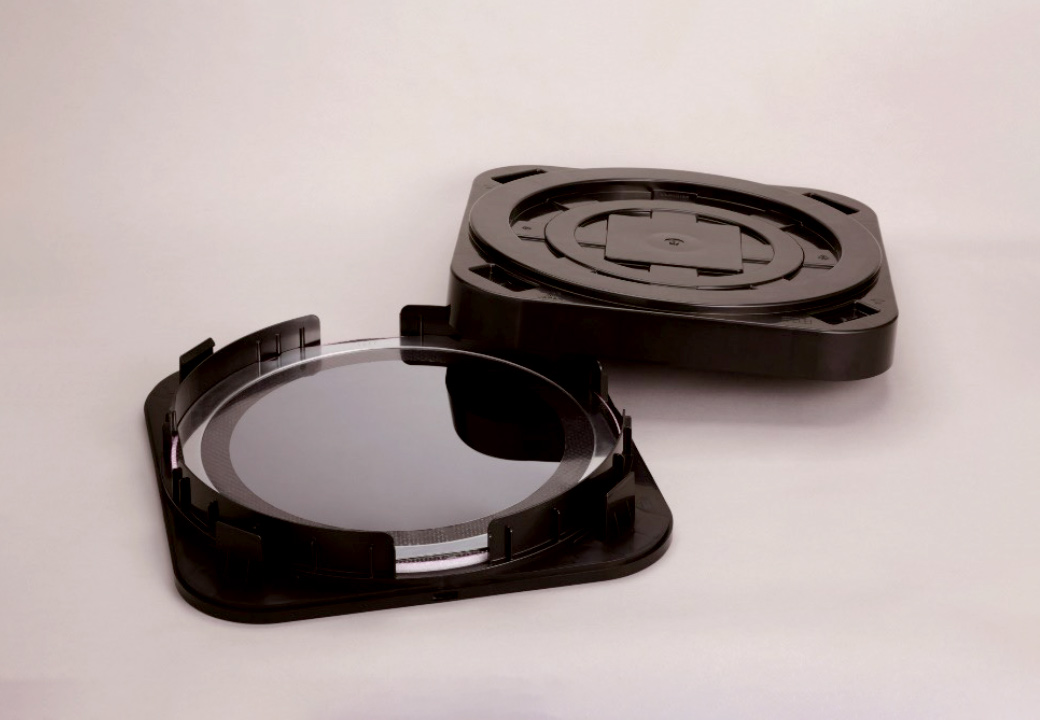

Achilles’ ND series can transfer your wafers both safely and efficiently. Since the wafer can be transported while it is attached to the tape frame, the time and effort required to put the wafer in the tray can be reduced.
Features
- For 300mm wafers. Maximum storage capacity of 13 wafers.
- Wafers can be stored with a tape frame.
- Made from low particles/ionic/outgassing material
- Light weight when used with Protos Frames. (Sold separately)
- ESD safe / Conforms to ANSI / ESD S541.
- Compatible with automatic wafer packing equipment.
Specification
- Model number：
- NDM-12
- Material：
- Container Body PP／（Polypropylene） carbon included,
- Surface resistance value：
- 10^4Ω < R < 10^9 Ω
- Wafer storage diameter：
- 402+0.5/-1.5mm
- Height of storage：
- 34.0mm
- product size：
- 72mm × 430mm × 430mm 1.88kg
- Carton size (5pcs/carton)：
- 455mm × 365mm × 470mm 10.8kg
Options
- Insert /Interleaf
- Pink or black inner foam
- Moisture barrier bags
Recommended combination
| For Memory | For Logic |
For Image Sensor For Glass |
||
|---|---|---|---|---|
| cushion | MA-16PEAS-□※1 | ◯ | ◯ | |
| MA-16PESD-■※2 | ◯ | |||
| interleaf | PEA-15.5-350(Z1) | ◯ | ||
| CPS-15.5-350(Z2) | ◯ | ◯ | ◯ | |
※1 □：1/3/5/6/10
※2 ■：1/3/5/10
PEAS,PEA : Antistatic Type
PESD,CPS : Conductive Type

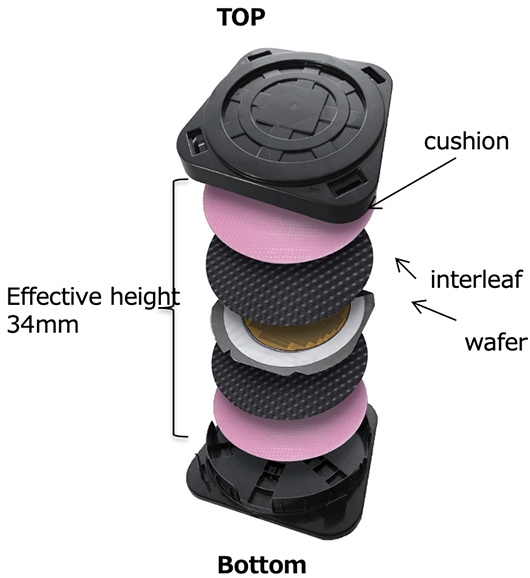

How to store
12inch = 300mm wafer mounted on dicing frames / 13 wafers can be stored
【Example ：1.5mmT film frame】
※Inner foam thickness changes depending on the thickness of the wafer.
※This package example does not guarantee that the wafer will not crack.

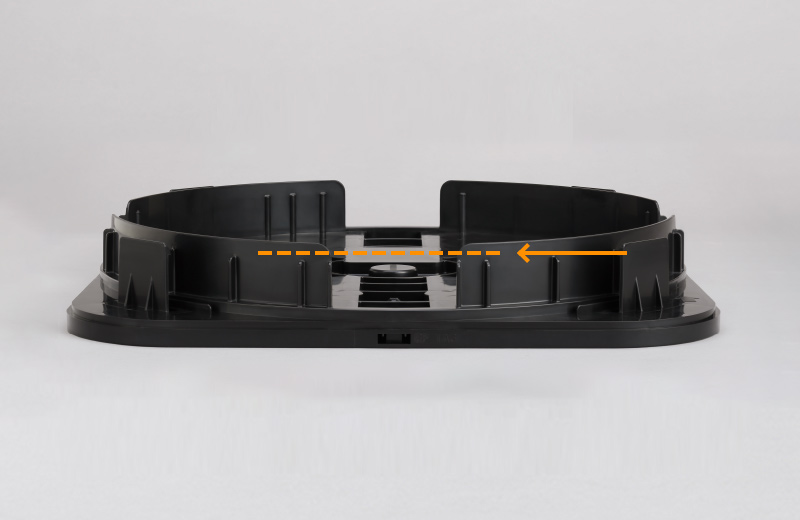

Cushion stacking guideline
Cushion stacking guideline
＊ Mark: ribs
