Conductive tape

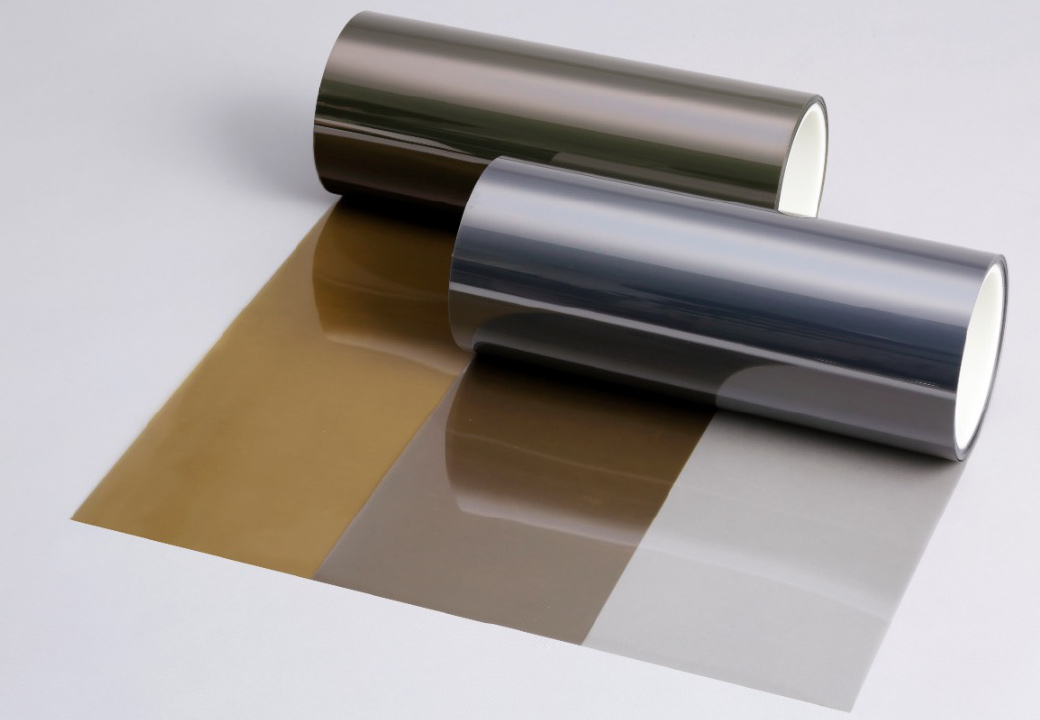

Heat-resistant conductive tape (silicon glue type)

This is a conductive tape used in baking processes in semiconductor and electronics manufacturing. Using conductive polyimide (PI) film and conductive polyethylene naphthalate (PEN) film as antistatic measures, the tape is safe to use with wafers and electronic parts.

Features

  • Conductive polyimide (PI) film and conductive polyethylene naphthalate (PEN) film are used.

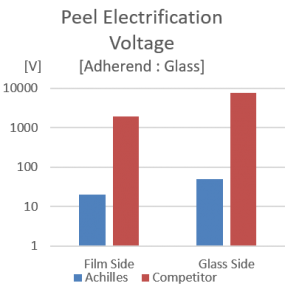

  • Suppresses peeling charge of wafers and electronic components, when the tape is peeled off.
  • Uses heat-resistant base material and adhesive.
    Heat resistant temperature
    PEN:180℃ PI:260℃

Specification

Model number
①STSI-PEN#25S104 ②STSI-PI#25S104
Material
①Conductive PEN ② Conductive PI
Width
240±2mm (For φ200mm) or 330±2mm (For φ300mm)
Length
20m or 80m
Base Film Thickness
25±2μm
Total Thickness
40±4μm

*The film thickness can be changed.

Configuration image

Physical property

  Unit STSI-PEN#25S104 STSI-PI#25S104 Measurement
Surface resistivity Ω/□ 1.3×105 1.3×105 High resistivity meter
Surface resistivity
(Adhesive site)
Ω/□ >1.3×1013 >1.3×1013 High resistivity meter
Decay time sec <0.3 <0.3 FTM 101C-4046
(23℃×15%RH)

Adhesive strength

(vs Glass)

N/25mm 0.2 0.2 Peeling Speed : 300mm/min
Peeling Angle : 170°
Outgassing μg/g 34 43 170℃ 10min.
Transparency rate % 75 47 JIS K 7105

*This data is an actual measurement value, not a guaranteed value.
