Wafer Handling System

150mm Multiple Film Frame Shipper
Protos Carrier ND-6N
6inch Film Frame Shipper (ESD Supported)

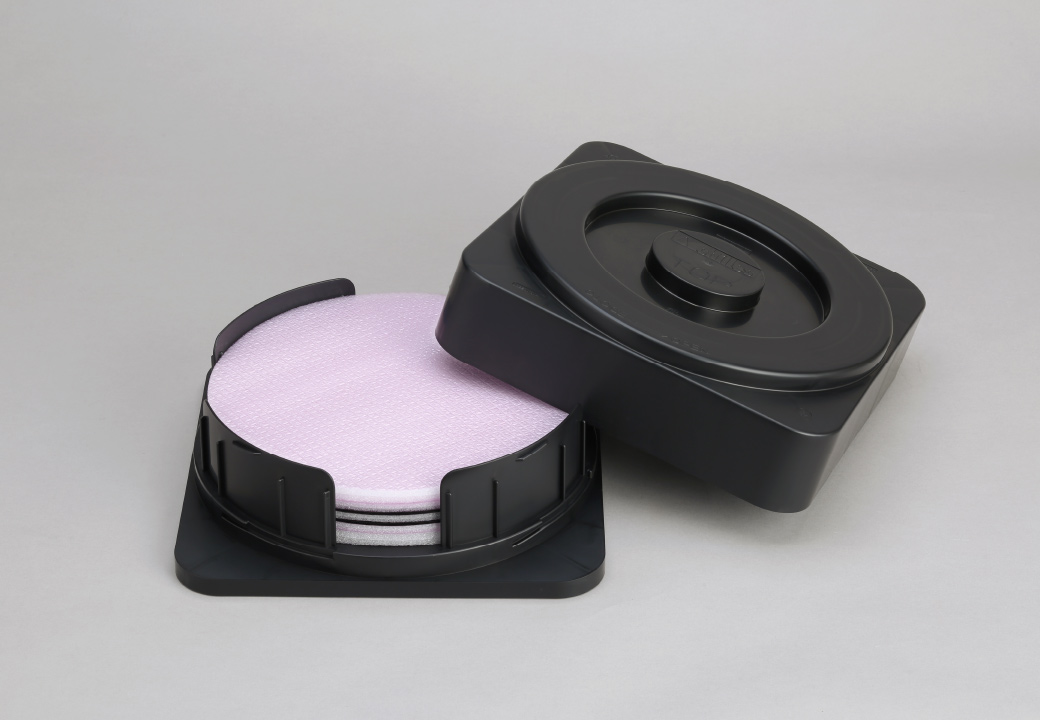

Achilles’ ND series can transfer your wafers both safely and efficiently. Since the wafer can be transported while it is attached to the tape frame, the time and effort required to put the wafer in the tray can be reduced.

Features

  • Made from low particles/ionic/outgassing material
  • Light weight when used with Protos Frames. *Sold separately
  • ESD safe / Conforms to ANSI / ESD S541.
  • Compatible with automatic wafer packing equipment.

Specification

Part number ND-6N
Compatible wafer size 125mm or 6inch frame wafers
Capacity 13 wafers
Material Static dissipative blend of polypropylen(PP) and carbon
Dimension 81mm × 252mm × 252mm
Weight 0.61kg
Wafer storage diameter 230+/-1 mm
Wafer storage height 40.0mm
Surface resistance R < 10^6 Ω
Carton dimension 10 cases/carton (530mmx400mmx290mm, 7.8kg)



Related Items

  • Interleaf
  • Inner foam
  • Moisture barrier bag

How to store

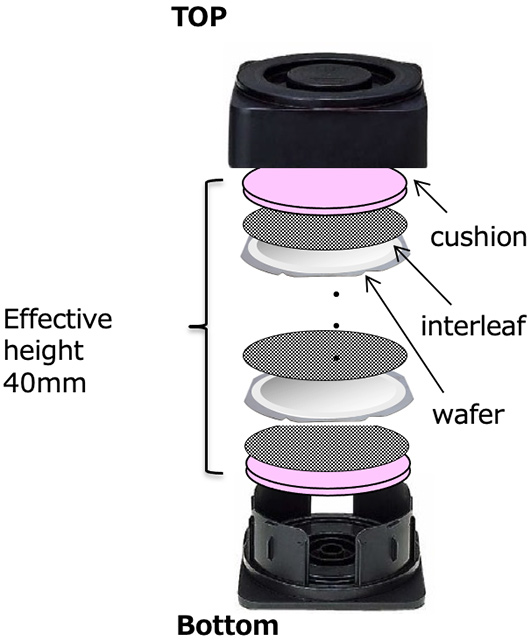

6inch = 150mm wafer mounted on dicing frames / 13 wafers can be stored

【Example :1.5mmT film frame


*Inner foam thickness changes depending on the thickness of the wafer.
*This example does not guarantee that the wafer will not crack.

How to close

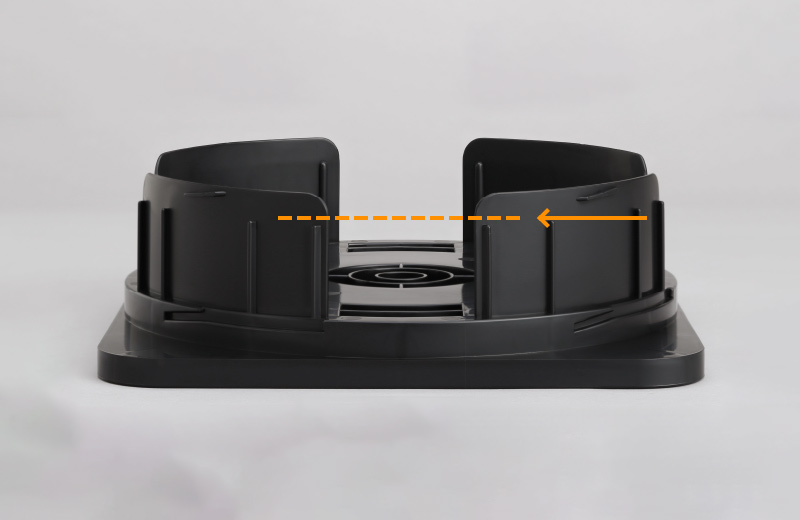

①Align the edges
(Yellow line in the figure)

②Turn counterclockwise until TOP falls naturally

③Turn right TOP

④Twist lock finish

Cushion stacking guideline

Cushion stacking guideline
* Mark: ribs
